SerFibro Type-03 New-Generation Grooved Fibre Cement Board

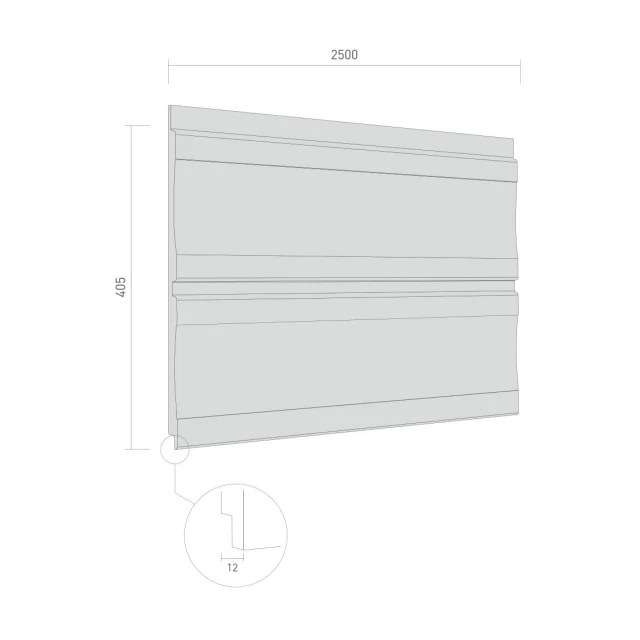

SerFibro Type-03 New-Generation Grooved Fibre Cement Board is an autoclaved cellulose-fibre reinforced cement architectural element manufactured from natural cellulose fibres, micronized quartz, Portland cement and water in full compliance with TS EN 12467+A2 NT Type, Category A. Factory-milled smooth-plane dual-channel profile (175 - 405 × 2500 mm · 1.013 m² · 150 pcs/pallet) produced in Smooth textures.

Standard 12 mm machined formats: 175 - 405 × 2500 × 12 mm (150 pcs/pallet). Manufactured to Level 1 / Level 2 precision tolerances under TS EN 12467+A2, maintaining squareness within ≤ 2 mm/m and edge straightness within ≤ 0.1%–0.3% a for rapid modular alignment on facade elevations.

Catalogued under TX-LN-01, Factory-milled smooth-plane dual-channel profile (175 - 405 × 2500 mm · 1.013 m² · 150 pcs/pallet) produced in Smooth textures. Installers should maintain consistent panel orientation across contiguous facade bays so oblique sunlight casts uniform architectural shadow lines.

Supplied either in natural autoclaved mineral grey (unprimed) or factory pre-primed ready for finishing, SerFibro Type-03 New-Generation Grooved Fibre Cement Board accepts all breathable water-based pure acrylic, silicone-modified exterior facade paints, antique patinas and semi-transparent mineral stains in unlimited RAL/NCS shades.

Cut boards dry using diamond-tipped or carbide-tipped circular saw blades equipped with dust extraction. Wipe alkaline sawing dust off immediately with a dry microfiber cloth or vacuum, lightly deburr cut edges, and seal field-cut edges with alkali-resistant acrylic primer before topcoating.

Extensively specified on residential apartments, twin villas, hotels, university campuses, hospitals, commercial office blocks and interior lobby feature walls to achieve crisp linear shadow channels while eliminating manual joint-profile labour.

Fix 12 mm grooved panels onto vertical galvanized steel or aluminium profiles (600–625 mm centres). New-generation rebated edges interlock cleanly to conceal horizontal joints and speed up facade installation.

Certified EN 13501-1 Class A1 non-combustible (furnace tested at 600 °C without ignition and zero toxic fume release), the autoclaved matrix achieves ≥ 1300 kg/m³ density, Category A freeze-thaw / warm-water / soak-dry resistance (RL ≥ 0.75), 50 heat-rain cycles without cracking or delamination, total water impermeability (no underside droplets after 24 h), zero asbestos, zero odour and complete immunity to rot, termites and UV.

Use the live dimension calculator above (1.013 m² / unit · 150 pcs / pallet) to convert net facade square metres or linear runs into exact piece and pallet counts. Include 7%–12% cutting and site reserve allowance depending on window openings and corner returns.

Units are stacked flat on reinforced wooden export skids fitted with rigid corner protectors, high-tensile PET strapping and moisture-barrier shrink hoods, engineered for safe road-trailer and 20 ft sea-container transport.

Store pallets on level, dry indoor floors away from standing water and direct rain. Lift elements vertically off the stack rather than dragging across textured/machined faces, and carry long boards vertically on edge with two operatives.

SerFibro dispatches SerFibro Type-03 New-Generation Grooved Fibre Cement Board worldwide under EXW, FCA, FOB, CIF and DAP Incoterms, allowing distributors and project buyers to consolidate flat boards, textured panels, grooved boards, cornices, window jambs and lap siding in a single shipment.

Architectural offices and B2B buyers can inspect the dimensioned CAD cross-section drawing directly in the table above and request physical hand samples alongside TS EN 12467+A2 / EN 13501-1 Class A1 Declaration of Performance documents.

Standard material quotations cover SerFibro Type-03 New-Generation Grooved Fibre Cement Board in the confirmed dimensions and surface state along with export palletising. Upon request, our CFY Engineering & Architecture team also provides architectural project design, modulation consultancy, facade engineering, substructure coordination, and professional site application as dedicated items in your quotation.
