High-Rise Residential Tower · Class A1 Window Surrounds
SerFibro PS-01 Fibre Cement Window Jamb Profile (100 mm) (SF-SV-PS01) — 100×2500×20 mm (360 pcs) · 100×3000×20 mm (300 pcs).
Uncoloured / Paintable
SF-SV-PS01 · TX-SV-01
SerFibro PS-01 Fibre Cement Window Jamb Profile (100 mm)
SerFibro PS-01 Fibre Cement Window Jamb Profile (100 mm) (SF-SV-PS01) is fabricated from high-density autoclaved fibre cement into a 20 mm solid compact 100 × 2500 / 3000 × 20 mm stepped window architrave profile (360 / 300 pcs/pallet). Engineered to withstand structural ageing, hail impact, freeze-thaw cycles and fire (EN 13501-1 Class A1), it frames window reveals, door surrounds and facade corners with permanent crisp geometry.
| Brand | SerFibro |
|---|---|
| Product Category | Uncoloured / Paintable Window Jambs (Söve) → |
| Product Group | Fibre Cement Window Jamb & Trim Profile |
| Fire Resistance Class | A1 TS EN 13501-1 |
| Primer Status |
|
| Application Areas |
|
Product Quick Specification Summary
Product Form
20 mm Solid Autoclaved Window Jamb / Trim Profile
TS EN 12467+A2 Cat. A
Surface / Texture Code
TX-SV-01
Supplied Finish Options
Natural Autoclaved Grey (Unprimed) or Factory Pre-Primed (Paintable)
Common Enquiry Formats
100 × 2500 mm
100 × 3000 mm
Candidate Thicknesses
20 mm
TS EN 12467+A2 Cat. A · Class A1
Geometric Board Area
0.250 m² / unit
360 pcs / pallet
SerFibro 20 mm Window Jamb Profiles — 16 Superior Advantages
Manufactured from 100% natural raw materials; eco-friendly and safe for human health.
Completely free of asbestos (NT Type) and any substances harmful to human health.
Class A1 non-combustible per EN 13501-1; does not melt and helps contain fire spread.
Odourless and emits zero toxic gases or harmful fumes during fire exposure.
Unaffected by water with lower absorption than reinforced concrete; safe in humid climates.
Autoclaved silicate-cement matrix provides extreme weather and UV radiation resistance.
Does not rot, corrode or degrade; long service life without special maintenance.
Provides strong thermal (λ = 0.20 W/mK) and acoustic insulation contribution.
Can be painted repeatedly with any alkali-resistant interior or exterior architectural paint.
Easily cut, drilled and machined with appropriate tools for fast dry installation.
Eliminates wet fine-plastering labour on walls, saving significant schedule time and cost.
High impact and mechanical shock resistance for demanding public and commercial walls.
Lightweight & easy to handle: an 8 mm board weighs approx. 11.2 kg/m² depending on ambient humidity.
Frost-resistant per TS EN 12467; performs reliably even in severe sub-zero climates.
Resistant to chemical agents and animal waste—ideal for agricultural and industrial facilities.
Bonds excellently to EPS/XPS/rockwool cores for composite sandwich and press-panel manufacturing.
Board Dimensions & Pallet Packing Table

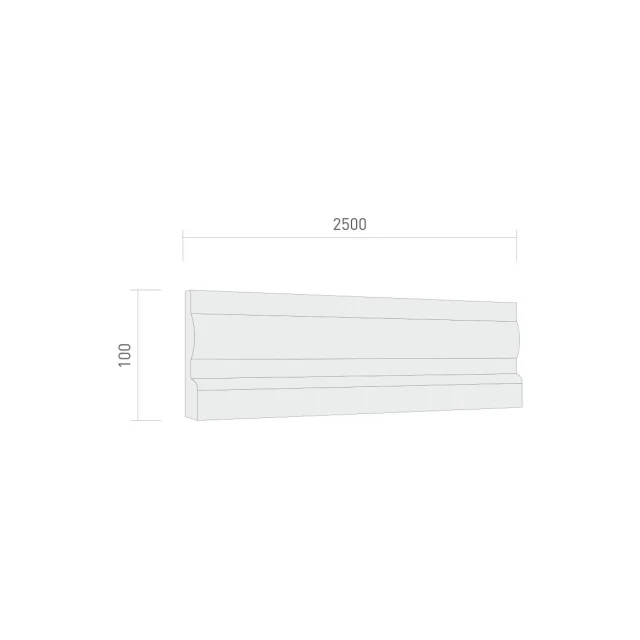

| Technical Drawing | Dimensions (mm × mm) | Thickness (mm) | Board Area (m²) | Boards per Pallet | Enquiry Form |
|---|---|---|---|---|---|
| 100 × 2500 mm | 20 mm | 0.25 m² | 360 pcs | ||
| 100 × 3000 mm | 20 mm | 0.3 m² | 300 pcs |
SerFibro
SerFibro PS-01 Fibre Cement Window Jamb Profile (100 mm)
Instant Board Quantity, Area & Volume Enquiry
SerFibro 20 mm Window Jamb Profiles — Complete Technical Specifications Table
| Property / Parameter | Specification Value |
|---|---|
| Product Definition | Cellulose fibre reinforced cement and silicate autoclaved board |
| Product Type & Category | NT Type — Category A Solid Autoclaved Window Jamb & Trim Profile (TS EN 12467) |
| Surface Appearance | Flat, 45° Beveled or Stepped PS-01..PS-04 Architrave Profile (Unprimed / Pre-Primed) |
| Tolerance Level | Level 1 |
| Standard Dimensions | Widths 80 / 100 / 120 / 150 / 200 mm × Lengths 2500 / 3000 mm |
| Thickness Range | 20 mm solid monolithic thickness |
| Dimensional Tolerances | Long Edge (length): ± 5 mm / Short Edge (width): ± 3.75 mm |
| Thickness Tolerance (e: board thickness) | Smooth Board: ± 10% e (Patterned Board: -10% e / +15% e) |
| Out-of-Squareness at Corners | ± 2 mm/m |
| Edge Straightness | ± 0.1% a (a: edge length) |
| Density | ~ 1350 ± 50 kg/m³ (8 mm board weight ~ 11.2 kg/m² depending on ambient moisture) |
| Vapour Diffusion Resistance Factor | μ ≤ 30 |
| Porosity | ~ 30% |
| Flexural Strength (Minimum) | Category A Exterior (Class 2): ≥ 7.0 N/mm² | Category C Interior (Class 3): ≥ 10.0 N/mm² (average of length/width) |
| Frost Resistance | Frost-resistant in accordance with TS EN 12467 |
| Water Impermeability | Water-impermeable in accordance with TS EN 12467 |
| Flame / Fire Resistance | Non-combustible, Class A1 building material per EN 13501-1 |
| Asbestos Content | Asbestos-free (NT Type board) |
| Harmful Substance Emission | Zero harmful substance or toxic gas emission |
| Thermal Expansion Coefficient | αt = 0.005 mm/mK |
| Thermal Conductivity | λ = 0.20 W/mK |
| Water Absorption Ratio | < 30% |
| In-Stock Board Moisture Content | < 10% (depending on ambient humidity) |
| Moisture Dimensional Change | 0.5 mm/m (at full saturation) |
Non-Combustibility & Thermal Conductivity Laboratory Tests
8 mm Board Furnace Test
Duration: 3 Hours · Temperature: 500 °C · Class A1 No Ignition
20 mm Board Furnace Test
Duration: 1 Hour · Temperature: 500 °C · Structural Integrity Preserved
Front vs Rear Face Thermal Drop (1 Hour)
Exposed Front Face: 506 °C → Unexposed Rear Face: 192 °C
SerFibro
Open Full Facade & Material Gallery
Architectural Facade & Material Appearance Examples
Architectural facade visuals illustrating real texture, joint modulation, and profile details for this fibre cement series. Available as standalone material supply or with integrated project consultancy, facade engineering, and application.
Prestige Villa · 20 mm PS-03 / PS-04 Window Jambs & Cornices
20 mm Stepped PS-03 / PS-04 Window Jamb Surrounds & Pilaster Mouldings on White Villa
PS-03 / PS-04 (150 × 20 mm) · Mitered Class A1 surrounds
Modern Detached House · Flat / 45° Jambs + Wood Cladding
Crisp White 20 mm Flat & 45° Beveled Jamb Bands Framing Warm Wood-Look Panels
Flat / 45° Jamb (80–200 × 20 mm) · Clean modern border
Window & Door Surrounds · 20 mm Jamb / Söve Profiles
Mitered 20 mm Stepped & Beveled Fibre Cement Window Jamb Surrounds
20 mm solid jamb bar · 45° mitered corners · Paintable face16-Point Technical & Export Supply Dossier
01 Product Overview & Autoclaved Mineral Engineering (SF-SV-PS01)
IndexSerFibro PS-01 Fibre Cement Window Jamb Profile (100 mm) (SF-SV-PS01) is an autoclaved cellulose-fibre reinforced cement architectural element manufactured from natural cellulose fibres, micronized quartz, Portland cement and water in full compliance with TS EN 12467+A2 NT Type, Category A. Precision-milled 20 mm compact 100 × 2500 / 3000 × 20 mm stepped window architrave profile (360 / 300 pcs/pallet) suitable for smooth or textured facade compositions.
02 Dimensions, Thicknesses & Precision Tolerances
Index20 mm thickness across 2500 mm and 3000 mm bar lengths (100×2500×20 mm (360 pcs) · 100×3000×20 mm (300 pcs)). Manufactured to Level 1 / Level 2 precision tolerances under TS EN 12467+A2, maintaining squareness within ≤ 2 mm/m and edge straightness within ≤ 0.1%–0.3% a for rapid modular alignment on facade elevations.
03 Surface Texture, Shadow Relief & Orientation Discipline
IndexCatalogued under TX-SV-01, Precision-milled 20 mm compact 100 × 2500 / 3000 × 20 mm stepped window architrave profile (360 / 300 pcs/pallet) suitable for smooth or textured facade compositions. Installers should maintain consistent panel orientation across contiguous facade bays so oblique sunlight casts uniform architectural shadow lines.
04 Natural Unprimed, Pre-Primed & Breathable Acrylic Coating Compatibility
IndexSupplied either in natural autoclaved mineral grey (unprimed) or factory pre-primed ready for finishing, SerFibro PS-01 Fibre Cement Window Jamb Profile (100 mm) accepts all breathable water-based pure acrylic, silicone-modified exterior facade paints, antique patinas and semi-transparent mineral stains in unlimited RAL/NCS shades.
05 Workshop Cutting, Drilling & Cut-Edge Sealing
IndexCut boards dry using diamond-tipped or carbide-tipped circular saw blades equipped with dust extraction. Wipe alkaline sawing dust off immediately with a dry microfiber cloth or vacuum, lightly deburr cut edges, and seal field-cut edges with alkali-resistant acrylic primer before topcoating.
06 Architectural & Structural Application Domains
IndexReplaces combustible and bird-/hail-vulnerable EPS/XPS foam trims on residential apartments, classical/neoclassical villas, hotels, schools, public buildings and ETICS/ventilated facade renovations.
07 Substructure Fixing, Joint Allowances & Thermal Movement
IndexFix mechanically with countersunk stainless/corrosion-resistant screws combined with exterior polyurethane/cementitious facade adhesive; fill countersunk heads and 2–3 mm butt joints with flexible exterior filler before acrylic painting.
08 EN 13501-1 Class A1 Fire Safety & TS EN 12467 Category A Durability
IndexCertified EN 13501-1 Class A1 non-combustible (furnace tested at 600 °C without ignition and zero toxic fume release), the autoclaved matrix achieves ≥ 1300 kg/m³ density, Category A freeze-thaw / warm-water / soak-dry resistance (RL ≥ 0.75), 50 heat-rain cycles without cracking or delamination, total water impermeability (no underside droplets after 24 h), zero asbestos, zero odour and complete immunity to rot, termites and UV.
09 Take-Off Calculation, Waste Allowance & Batch Planning
IndexUse the live dimension calculator above (0.250 m² / unit · 360 pcs / pallet) to convert net facade square metres or linear runs into exact piece and pallet counts. Include 7%–12% cutting and site reserve allowance depending on window openings and corner returns.
10 Export Palletising, Edge Protection & Container Loading
IndexUnits are stacked flat on reinforced wooden export skids fitted with rigid corner protectors, high-tensile PET strapping and moisture-barrier shrink hoods, engineered for safe road-trailer and 20 ft sea-container transport.
11 Site Storage, Forklift Handling & Moisture Protection
IndexStore pallets on level, dry indoor floors away from standing water and direct rain. Lift elements vertically off the stack rather than dragging across textured/machined faces, and carry long boards vertically on edge with two operatives.
12 Mixed-Model Export Consolidation from Türkiye
IndexSerFibro dispatches SerFibro PS-01 Fibre Cement Window Jamb Profile (100 mm) worldwide under EXW, FCA, FOB, CIF and DAP Incoterms, allowing distributors and project buyers to consolidate flat boards, textured panels, grooved boards, cornices, window jambs and lap siding in a single shipment.
13 Physical Sample Box, CAD Cross-Sections & CE / DoP Submittals
IndexArchitectural offices and B2B buyers can inspect the dimensioned CAD cross-section drawing directly in the table above and request physical hand samples alongside TS EN 12467+A2 / EN 13501-1 Class A1 Declaration of Performance documents.
14 Supply, Consultancy, Engineering & Application Scope
IndexStandard material quotations cover SerFibro PS-01 Fibre Cement Window Jamb Profile (100 mm) (SF-SV-PS01) in the confirmed dimensions and surface state along with export palletising. Upon request, our CFY Engineering & Architecture team also provides architectural project design, modulation consultancy, facade engineering, substructure coordination, and professional site application as dedicated items in your quotation.
Related Fibre Cement Product Families
SerFibro PS-02 Fibre Cement Window Jamb Profile (120 mm)
20 mm solid Class A1 autoclaved medium-width 120 × 2500 / 3000 × 20 mm decorative stepped window jamb profile (300 / 250 pcs/pallet) in 2500 mm and 3000 mm lengths.
SerFibro PS-03 Fibre Cement Window Jamb Profile (150 mm)
20 mm solid Class A1 autoclaved wide 150 × 2500 / 3000 × 20 mm classical stepped window architrave profile (240 / 200 pcs/pallet) in 2500 mm and 3000 mm lengths.
SerFibro Flat Fibre Cement Window Jamb Trim
20 mm solid Class A1 autoclaved minimalist square-edged flat window/door architrave and corner band in 80, 100, 150 and 200 mm widths in 2500 mm and 3000 mm lengths.
Frequently Asked Technical & Commercial Questions
What exact dimensions and thicknesses are produced for SerFibro PS-01 Fibre Cement Window Jamb Profile (100 mm)?
20 mm thickness across 2500 mm and 3000 mm bar lengths (100×2500×20 mm (360 pcs) · 100×3000×20 mm (300 pcs)).
Which surface textures and coating options are available for SF-SV-PS01?
Precision-milled 20 mm compact 100 × 2500 / 3000 × 20 mm stepped window architrave profile (360 / 300 pcs/pallet) suitable for smooth or textured facade compositions. Boards are supplied unprimed natural grey or factory pre-primed and can be finished in any water-based exterior acrylic facade paint or stain.
What fire reaction class and weather durability standard does SerFibro PS-01 Fibre Cement Window Jamb Profile (100 mm) meet?
It holds EN 13501-1 Class A1 non-combustibility (tested at 600 °C without ignition or toxic gas) and TS EN 12467+A2 Category A exterior durability (RL ≥ 0.75 across freeze-thaw, wet-dry and warm-water cycles, plus 50 heat-rain cycles).
How many pieces are packed on an export pallet of SF-SV-PS01?
Standard unit and pallet metrics start at 0.250 m² / unit · 360 pcs / pallet (see every row in the Dimension & Pallet Table above for exact piece and m² totals per format).
Does SerFibro provide project consultancy, facade engineering, and installation alongside material supply?
Yes. You can procure SerFibro PS-01 Fibre Cement Window Jamb Profile (100 mm) as standalone domestic or export B2B material supply (EXW, FCA, FOB, CIF, DAP), or request an integrated project package covering architectural consultancy, facade engineering, sub-framing, and professional application.
