Neoclassical Heritage-Style Facade · 20 mm KS-01 Cornice
SerFibro KS-01 Cornice (SF-KS-01) — 200 × 2500 × 20 mm (180 pcs/pallet) & 200 × 3000 × 20 mm (150 pcs/pallet).
Uncoloured / Paintable
SF-KS-01 · TX-KS-01
SerFibro KS-01 Fibre Cement Cornice Profile (200 mm)
SerFibro KS-01 Cornice Profile (SF-KS-01) is an architectural floor-band ornament fabricated by sizing and compacting autoclaved fibre cement into a solid 20 mm 200 mm wide stepped architectural floor-band moulding profile. Supplied in 200 × 2500 × 20 mm and 200 × 3000 × 20 mm bars, it delivers crisp horizontal shadow lines between building storeys with permanent Class A1 non-combustibility and impact resistance.
| Brand | SerFibro |
|---|---|
| Product Category | Uncoloured / Paintable Cornice Profiles → |
| Product Group | Fibre Cement Floor-Band Cornice Profile |
| Fire Resistance Class | A1 TS EN 13501-1 |
| Primer Status |
|
| Application Areas |
|
Product Quick Specification Summary
Product Form
20 mm Solid Autoclaved Floor-Band Cornice Profile
TS EN 12467+A2 Cat. A
Surface / Texture Code
TX-KS-01
Supplied Finish Options
Natural Autoclaved Grey (Unprimed) or Factory Pre-Primed (Paintable)
Common Enquiry Formats
200 × 2500 mm
200 × 3000 mm
Candidate Thicknesses
20 mm
TS EN 12467+A2 Cat. A · Class A1
Geometric Board Area
0.500 m² / unit
180 pcs / pallet
SerFibro 20 mm Cornice Profiles — 16 Superior Advantages
Manufactured from 100% natural raw materials; eco-friendly and safe for human health.
Completely free of asbestos (NT Type) and any substances harmful to human health.
Class A1 non-combustible per EN 13501-1; does not melt and helps contain fire spread.
Odourless and emits zero toxic gases or harmful fumes during fire exposure.
Unaffected by water with lower absorption than reinforced concrete; safe in humid climates.
Autoclaved silicate-cement matrix provides extreme weather and UV radiation resistance.
Does not rot, corrode or degrade; long service life without special maintenance.
Provides strong thermal (λ = 0.20 W/mK) and acoustic insulation contribution.
Can be painted repeatedly with any alkali-resistant interior or exterior architectural paint.
Easily cut, drilled and machined with appropriate tools for fast dry installation.
Eliminates wet fine-plastering labour on walls, saving significant schedule time and cost.
High impact and mechanical shock resistance for demanding public and commercial walls.
Lightweight & easy to handle: an 8 mm board weighs approx. 11.2 kg/m² depending on ambient humidity.
Frost-resistant per TS EN 12467; performs reliably even in severe sub-zero climates.
Resistant to chemical agents and animal waste—ideal for agricultural and industrial facilities.
Bonds excellently to EPS/XPS/rockwool cores for composite sandwich and press-panel manufacturing.
Board Dimensions & Pallet Packing Table

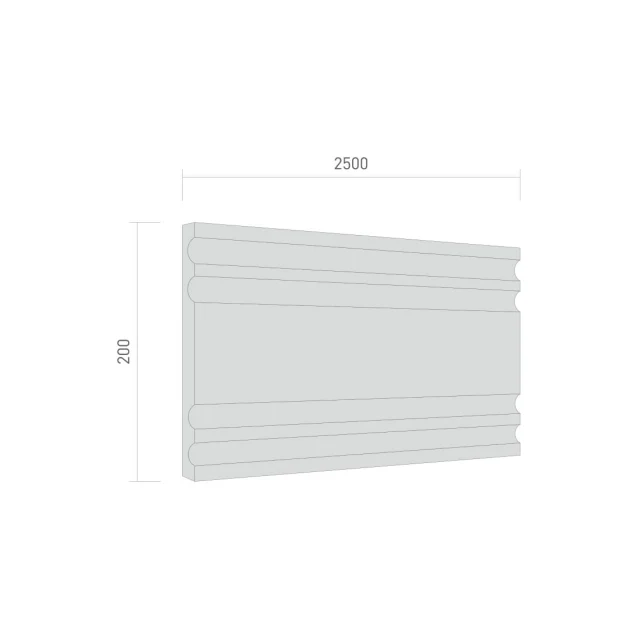

| Technical Drawing | Dimensions (mm × mm) | Thickness (mm) | Board Area (m²) | Boards per Pallet | Enquiry Form |
|---|---|---|---|---|---|
| 200 × 2500 mm | 20 mm | 0.5 m² | 180 pcs | ||
| 200 × 3000 mm | 20 mm | 0.6 m² | 150 pcs |
SerFibro
SerFibro KS-01 Fibre Cement Cornice Profile (200 mm)
Instant Board Quantity, Area & Volume Enquiry
SerFibro 20 mm Cornice Profiles — Complete Technical Specifications Table
| Property / Parameter | Specification Value |
|---|---|
| Product Definition | Cellulose fibre reinforced cement and silicate autoclaved board |
| Product Type & Category | NT Type — Category A Solid Autoclaved Architectural Cornice Profile (TS EN 12467) |
| Surface Appearance | Stepped Architectural Moulding Profile (Unprimed or Factory Pre-Primed) |
| Tolerance Level | Level 1 |
| Standard Dimensions | KS-01: 200 × 2500 / 3000 mm · KS-02: 205 × 2500 / 3000 mm |
| Thickness Range | 20 mm solid monolithic thickness |
| Dimensional Tolerances | Long Edge (length): ± 5 mm / Short Edge (width): ± 3.75 mm |
| Thickness Tolerance (e: board thickness) | Smooth Board: ± 10% e (Patterned Board: -10% e / +15% e) |
| Out-of-Squareness at Corners | ± 2 mm/m |
| Edge Straightness | ± 0.1% a (a: edge length) |
| Density | ~ 1350 ± 50 kg/m³ (8 mm board weight ~ 11.2 kg/m² depending on ambient moisture) |
| Vapour Diffusion Resistance Factor | μ ≤ 30 |
| Porosity | ~ 30% |
| Flexural Strength (Minimum) | Category A Exterior (Class 2): ≥ 7.0 N/mm² | Category C Interior (Class 3): ≥ 10.0 N/mm² (average of length/width) |
| Frost Resistance | Frost-resistant in accordance with TS EN 12467 |
| Water Impermeability | Water-impermeable in accordance with TS EN 12467 |
| Flame / Fire Resistance | Non-combustible, Class A1 building material per EN 13501-1 |
| Asbestos Content | Asbestos-free (NT Type board) |
| Harmful Substance Emission | Zero harmful substance or toxic gas emission |
| Thermal Expansion Coefficient | αt = 0.005 mm/mK |
| Thermal Conductivity | λ = 0.20 W/mK |
| Water Absorption Ratio | < 30% |
| In-Stock Board Moisture Content | < 10% (depending on ambient humidity) |
| Moisture Dimensional Change | 0.5 mm/m (at full saturation) |
Non-Combustibility & Thermal Conductivity Laboratory Tests
8 mm Board Furnace Test
Duration: 3 Hours · Temperature: 500 °C · Class A1 No Ignition
20 mm Board Furnace Test
Duration: 1 Hour · Temperature: 500 °C · Structural Integrity Preserved
Front vs Rear Face Thermal Drop (1 Hour)
Exposed Front Face: 506 °C → Unexposed Rear Face: 192 °C
SerFibro
Open Full Facade & Material Gallery
Architectural Facade & Material Appearance Examples
Architectural facade visuals illustrating real texture, joint modulation, and profile details for this fibre cement series. Available as standalone material supply or with integrated project consultancy, facade engineering, and application.
Industrial & Corporate Headquarter · Trim & Smooth Cladding
Bold Crimson Painted Fibre Cement Cladding & Sharp Parapet / Band Transitions
Class A1 industrial fire safety · UV-fast exterior coating
Classical Urban Renovation · 20 mm KS-02 Cornices & Keystones
Multi-Tier 20 mm Cream Floor-Band Cornices & Arched Window Surrounds in Upward View
KS-02 (205 × 20 mm) · Solid autoclaved Class A1 cornice
Urban Residential & Hotel · 20 mm Cornice Profile (KS-01/02)
Class A1 Stepped Horizontal Floor-Band Cornice Mouldings Between Storeys
20 mm Class A1 solid section · Primed & painted off-white16-Point Technical & Export Supply Dossier
01 Product Overview & Autoclaved Mineral Engineering (SF-KS-01)
IndexSerFibro KS-01 Fibre Cement Cornice Profile (200 mm) (SF-KS-01) is an autoclaved cellulose-fibre reinforced cement architectural element manufactured from natural cellulose fibres, micronized quartz, Portland cement and water in full compliance with TS EN 12467+A2 NT Type, Category A. Crisp machined 200 mm wide stepped architectural floor-band moulding profile in 20 mm solid mineral thickness.
02 Dimensions, Thicknesses & Precision Tolerances
Index200 × 2500 × 20 mm (180 pcs/pallet) and 200 × 3000 × 20 mm (150 pcs/pallet). Manufactured to Level 1 / Level 2 precision tolerances under TS EN 12467+A2, maintaining squareness within ≤ 2 mm/m and edge straightness within ≤ 0.1%–0.3% a for rapid modular alignment on facade elevations.
03 Surface Texture, Shadow Relief & Orientation Discipline
IndexCatalogued under TX-KS-01, Crisp machined 200 mm wide stepped architectural floor-band moulding profile in 20 mm solid mineral thickness. Installers should maintain consistent panel orientation across contiguous facade bays so oblique sunlight casts uniform architectural shadow lines.
04 Natural Unprimed, Pre-Primed & Breathable Acrylic Coating Compatibility
IndexSupplied either in natural autoclaved mineral grey (unprimed) or factory pre-primed ready for finishing, SerFibro KS-01 Fibre Cement Cornice Profile (200 mm) accepts all breathable water-based pure acrylic, silicone-modified exterior facade paints, antique patinas and semi-transparent mineral stains in unlimited RAL/NCS shades.
05 Workshop Cutting, Drilling & Cut-Edge Sealing
IndexCut boards dry using diamond-tipped or carbide-tipped circular saw blades equipped with dust extraction. Wipe alkaline sawing dust off immediately with a dry microfiber cloth or vacuum, lightly deburr cut edges, and seal field-cut edges with alkali-resistant acrylic primer before topcoating.
06 Architectural & Structural Application Domains
IndexReplaces combustible and bird-/hail-vulnerable EPS/XPS foam trims on residential apartments, classical/neoclassical villas, hotels, schools, public buildings and ETICS/ventilated facade renovations.
07 Substructure Fixing, Joint Allowances & Thermal Movement
IndexFix mechanically with countersunk stainless/corrosion-resistant screws combined with exterior polyurethane/cementitious facade adhesive; fill countersunk heads and 2–3 mm butt joints with flexible exterior filler before acrylic painting.
08 EN 13501-1 Class A1 Fire Safety & TS EN 12467 Category A Durability
IndexCertified EN 13501-1 Class A1 non-combustible (furnace tested at 600 °C without ignition and zero toxic fume release), the autoclaved matrix achieves ≥ 1300 kg/m³ density, Category A freeze-thaw / warm-water / soak-dry resistance (RL ≥ 0.75), 50 heat-rain cycles without cracking or delamination, total water impermeability (no underside droplets after 24 h), zero asbestos, zero odour and complete immunity to rot, termites and UV.
09 Take-Off Calculation, Waste Allowance & Batch Planning
IndexUse the live dimension calculator above (0.500 m² / unit · 180 pcs / pallet) to convert net facade square metres or linear runs into exact piece and pallet counts. Include 7%–12% cutting and site reserve allowance depending on window openings and corner returns.
10 Export Palletising, Edge Protection & Container Loading
IndexUnits are stacked flat on reinforced wooden export skids fitted with rigid corner protectors, high-tensile PET strapping and moisture-barrier shrink hoods, engineered for safe road-trailer and 20 ft sea-container transport.
11 Site Storage, Forklift Handling & Moisture Protection
IndexStore pallets on level, dry indoor floors away from standing water and direct rain. Lift elements vertically off the stack rather than dragging across textured/machined faces, and carry long boards vertically on edge with two operatives.
12 Mixed-Model Export Consolidation from Türkiye
IndexSerFibro dispatches SerFibro KS-01 Fibre Cement Cornice Profile (200 mm) worldwide under EXW, FCA, FOB, CIF and DAP Incoterms, allowing distributors and project buyers to consolidate flat boards, textured panels, grooved boards, cornices, window jambs and lap siding in a single shipment.
13 Physical Sample Box, CAD Cross-Sections & CE / DoP Submittals
IndexArchitectural offices and B2B buyers can inspect the dimensioned CAD cross-section drawing directly in the table above and request physical hand samples alongside TS EN 12467+A2 / EN 13501-1 Class A1 Declaration of Performance documents.
14 Supply, Consultancy, Engineering & Application Scope
IndexStandard material quotations cover SerFibro KS-01 Fibre Cement Cornice Profile (200 mm) (SF-KS-01) in the confirmed dimensions and surface state along with export palletising. Upon request, our CFY Engineering & Architecture team also provides architectural project design, modulation consultancy, facade engineering, substructure coordination, and professional site application as dedicated items in your quotation.
Related Fibre Cement Product Families
SerFibro KS-02 Fibre Cement Cornice Profile (205 mm)
Solid 20 mm autoclaved 205 mm wide multi-stepped architectural cornice moulding profile in 2500 mm (180 pcs/pallet) and 3000 mm (150 pcs/pallet) lengths with Class A1 fire safety.
Fibre Cement Cornice & Floor-Band Profiles (KS-01 / KS-02)
20 mm thick Class A1 stepped horizontal floor-band & cornice profiles (KS-01: 200 mm, KS-02: 205 mm) in 2500 and 3000 mm lengths.
SerFibro PS-03 Fibre Cement Window Jamb Profile (150 mm)
20 mm solid Class A1 autoclaved wide 150 × 2500 / 3000 × 20 mm classical stepped window architrave profile (240 / 200 pcs/pallet) in 2500 mm and 3000 mm lengths.
Frequently Asked Technical & Commercial Questions
What exact dimensions and thicknesses are produced for SerFibro KS-01 Fibre Cement Cornice Profile (200 mm)?
200 × 2500 × 20 mm (180 pcs/pallet) and 200 × 3000 × 20 mm (150 pcs/pallet).
Which surface textures and coating options are available for SF-KS-01?
Crisp machined 200 mm wide stepped architectural floor-band moulding profile in 20 mm solid mineral thickness. Boards are supplied unprimed natural grey or factory pre-primed and can be finished in any water-based exterior acrylic facade paint or stain.
What fire reaction class and weather durability standard does SerFibro KS-01 Fibre Cement Cornice Profile (200 mm) meet?
It holds EN 13501-1 Class A1 non-combustibility (tested at 600 °C without ignition or toxic gas) and TS EN 12467+A2 Category A exterior durability (RL ≥ 0.75 across freeze-thaw, wet-dry and warm-water cycles, plus 50 heat-rain cycles).
How many pieces are packed on an export pallet of SF-KS-01?
Standard unit and pallet metrics start at 0.500 m² / unit · 180 pcs / pallet (see every row in the Dimension & Pallet Table above for exact piece and m² totals per format).
Does SerFibro provide project consultancy, facade engineering, and installation alongside material supply?
Yes. You can procure SerFibro KS-01 Fibre Cement Cornice Profile (200 mm) as standalone domestic or export B2B material supply (EXW, FCA, FOB, CIF, DAP), or request an integrated project package covering architectural consultancy, facade engineering, sub-framing, and professional application.
