SerFibro Flat Fibre Cement Window Jamb Trim
20 mm solid Class A1 autoclaved minimalist square-edged flat window/door architrave and corner band in 80, 100, 150 and 200 mm widths in 2500 mm and 3000 mm lengths.
20 mm autoclaved fibre cement window jamb & architrave profiles — Flat, 45° Beveled (80–200 mm) and Stepped PS-01..PS-04 (100–150 mm).
Uncoloured / Paintable
SF-JAMB · TX-SV-01 / TX-SM-01
Fibre Cement Window Jamb & Architrave Trim Profiles (20 mm — Flat, 45° & PS Series)
SerFibro 20 mm Fibre Cement Window Jamb & Architrave Profiles frame exterior windows, doors, and building corners with crisp mineral precision. Available in six distinct geometries—Flat, 45° Beveled, and four Stepped decorative profiles (PS-01, PS-02, PS-03, PS-04)—across 80 to 200 mm widths and 2500 / 3000 mm lengths, they deliver permanent Class A1 fire safety and impact strength.
| Brand | SerFibro |
|---|---|
| Product Category | Uncoloured / Paintable Window Jambs (Söve) → |
| Product Group | 20 mm Window Jamb, Architrave & Corner Trim Profiles (Flat, 45° Beveled & PS-01..04) |
| Fire Resistance Class | A1 TS EN 13501-1 |
| Primer Status |
|
| Application Areas |
|
SerFibro
Products in This Series
SerFibro 45° Beveled Fibre Cement Window Jamb Trim
20 mm solid Class A1 autoclaved 45°-chamfered window surround profile in 80, 100, 150 and 200 mm widths creating crisp angled reveal transitions in 2500 mm and 3000 mm lengths.
SerFibro PS-01 Fibre Cement Window Jamb Profile (100 mm)
20 mm solid Class A1 autoclaved compact 100 × 2500 / 3000 × 20 mm stepped window architrave profile (360 / 300 pcs/pallet) in 2500 mm and 3000 mm lengths.
SerFibro PS-02 Fibre Cement Window Jamb Profile (120 mm)
20 mm solid Class A1 autoclaved medium-width 120 × 2500 / 3000 × 20 mm decorative stepped window jamb profile (300 / 250 pcs/pallet) in 2500 mm and 3000 mm lengths.
SerFibro PS-03 Fibre Cement Window Jamb Profile (150 mm)
20 mm solid Class A1 autoclaved wide 150 × 2500 / 3000 × 20 mm classical stepped window architrave profile (240 / 200 pcs/pallet) in 2500 mm and 3000 mm lengths.
SerFibro PS-04 Fibre Cement Window Jamb Profile (150 mm)
20 mm solid Class A1 autoclaved 150 × 2500 / 3000 × 20 mm dual-stepped chamfered window surround profile (240 / 200 pcs/pallet) in 2500 mm and 3000 mm lengths.
Product Quick Specification Summary
Product Form
20 mm Autoclaved Window Jamb & Trim Bar
EN 12467 Cat. A · Class A1
Surface / Texture Code
TX-SV-01
Flat, 45° Beveled & Stepped PS-01 / PS-02 / PS-03 / PS-04
Supplied Finish Options
Natural Grey Unprimed or Factory Alkali-Primed
Paintable
Common Enquiry Formats
Widths: 80 / 100 / 120 / 150 / 200 mm
Lengths: 2500 / 3000 mm
Candidate Thicknesses
20 mm nominal thickness across all 6 profile sub-types
14 variants
Geometric Board Area
0.200 – 0.600 m²/pc
150 to 450 pcs per export pallet
90 m²/pallet
SerFibro 20 mm Window Jamb Profiles — 16 Superior Advantages
Manufactured from 100% natural raw materials; eco-friendly and safe for human health.
Completely free of asbestos (NT Type) and any substances harmful to human health.
Class A1 non-combustible per EN 13501-1; does not melt and helps contain fire spread.
Odourless and emits zero toxic gases or harmful fumes during fire exposure.
Unaffected by water with lower absorption than reinforced concrete; safe in humid climates.
Autoclaved silicate-cement matrix provides extreme weather and UV radiation resistance.
Does not rot, corrode or degrade; long service life without special maintenance.
Provides strong thermal (λ = 0.20 W/mK) and acoustic insulation contribution.
Can be painted repeatedly with any alkali-resistant interior or exterior architectural paint.
Easily cut, drilled and machined with appropriate tools for fast dry installation.
Eliminates wet fine-plastering labour on walls, saving significant schedule time and cost.
High impact and mechanical shock resistance for demanding public and commercial walls.
Lightweight & easy to handle: an 8 mm board weighs approx. 11.2 kg/m² depending on ambient humidity.
Frost-resistant per TS EN 12467; performs reliably even in severe sub-zero climates.
Resistant to chemical agents and animal waste—ideal for agricultural and industrial facilities.
Bonds excellently to EPS/XPS/rockwool cores for composite sandwich and press-panel manufacturing.
Board Dimensions & Pallet Packing Table
| Technical Drawing | Dimensions (mm × mm) | Thickness (mm) | Board Area (m²) | Boards per Pallet | Enquiry Form |
|---|---|---|---|---|---|
|
Flat / 45° Beveled 80 × 2500 mm |
20 mm | 0.2 m² | 450 pcs | ||
|
Flat / 45° Beveled 80 × 3000 mm |
20 mm | 0.24 m² | 375 pcs | ||
|
Flat / 45° Beveled 100 × 2500 mm |
20 mm | 0.25 m² | 360 pcs | ||
|
Flat / 45° Beveled 100 × 3000 mm |
20 mm | 0.3 m² | 300 pcs | ||
|
Flat / 45° Beveled 150 × 2500 mm |
20 mm | 0.375 m² | 240 pcs | ||
|
Flat / 45° Beveled 150 × 3000 mm |
20 mm | 0.45 m² | 200 pcs | ||
|
Flat / 45° Beveled 200 × 2500 mm |
20 mm | 0.5 m² | 180 pcs | ||
|
Flat / 45° Beveled 200 × 3000 mm |
20 mm | 0.6 m² | 150 pcs | ||
|
Stepped PS-01 100 × 2500 mm |
20 mm | 0.25 m² | 360 pcs | ||
|
Stepped PS-01 100 × 3000 mm |
20 mm | 0.3 m² | 300 pcs | ||
|

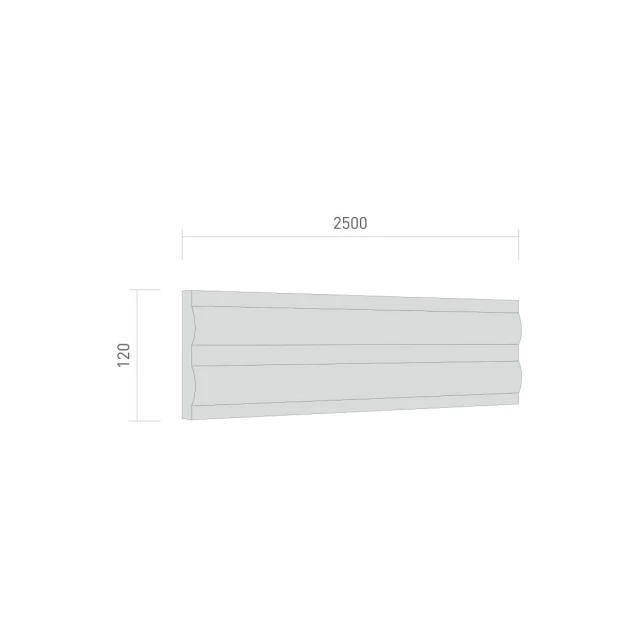

Stepped PS-02 120 × 2500 mm |
20 mm | 0.3 m² | 300 pcs | ||
|
Stepped PS-02 120 × 3000 mm |
20 mm | 0.36 m² | 250 pcs | ||
|
Stepped PS-03 / PS-04 150 × 2500 mm |
20 mm | 0.375 m² | 240 pcs | ||
|
Stepped PS-03 / PS-04 150 × 3000 mm |
20 mm | 0.45 m² | 200 pcs |
SerFibro
SF-JAMB · Window Jambs / Söve (20 mm)
Instant Board Quantity, Area & Volume Enquiry
SerFibro 20 mm Window Jamb Profiles — Complete Technical Specifications Table
| Property / Parameter | Specification Value |
|---|---|
| Product Definition | Cellulose fibre reinforced cement and silicate autoclaved board |
| Product Type & Category | NT Type — Category A Solid Autoclaved Window Jamb & Trim Profile (TS EN 12467) |
| Surface Appearance | Flat, 45° Beveled or Stepped PS-01..PS-04 Architrave Profile (Unprimed / Pre-Primed) |
| Tolerance Level | Level 1 |
| Standard Dimensions | Widths 80 / 100 / 120 / 150 / 200 mm × Lengths 2500 / 3000 mm |
| Thickness Range | 20 mm solid monolithic thickness |
| Dimensional Tolerances | Long Edge (length): ± 5 mm / Short Edge (width): ± 3.75 mm |
| Thickness Tolerance (e: board thickness) | Smooth Board: ± 10% e (Patterned Board: -10% e / +15% e) |
| Out-of-Squareness at Corners | ± 2 mm/m |
| Edge Straightness | ± 0.1% a (a: edge length) |
| Density | ~ 1350 ± 50 kg/m³ (8 mm board weight ~ 11.2 kg/m² depending on ambient moisture) |
| Vapour Diffusion Resistance Factor | μ ≤ 30 |
| Porosity | ~ 30% |
| Flexural Strength (Minimum) | Category A Exterior (Class 2): ≥ 7.0 N/mm² | Category C Interior (Class 3): ≥ 10.0 N/mm² (average of length/width) |
| Frost Resistance | Frost-resistant in accordance with TS EN 12467 |
| Water Impermeability | Water-impermeable in accordance with TS EN 12467 |
| Flame / Fire Resistance | Non-combustible, Class A1 building material per EN 13501-1 |
| Asbestos Content | Asbestos-free (NT Type board) |
| Harmful Substance Emission | Zero harmful substance or toxic gas emission |
| Thermal Expansion Coefficient | αt = 0.005 mm/mK |
| Thermal Conductivity | λ = 0.20 W/mK |
| Water Absorption Ratio | < 30% |
| In-Stock Board Moisture Content | < 10% (depending on ambient humidity) |
| Moisture Dimensional Change | 0.5 mm/m (at full saturation) |
Non-Combustibility & Thermal Conductivity Laboratory Tests
8 mm Board Furnace Test
Duration: 3 Hours · Temperature: 500 °C · Class A1 No Ignition
20 mm Board Furnace Test
Duration: 1 Hour · Temperature: 500 °C · Structural Integrity Preserved
Front vs Rear Face Thermal Drop (1 Hour)
Exposed Front Face: 506 °C → Unexposed Rear Face: 192 °C
SerFibro
Open Full Facade & Material Gallery
Architectural Facade & Material Appearance Examples
Architectural facade visuals illustrating real texture, joint modulation, and profile details for this fibre cement series. Available as standalone material supply or with integrated project consultancy, facade engineering, and application.
Prestige Villa · 20 mm PS-03 / PS-04 Window Jambs & Cornices
20 mm Stepped PS-03 / PS-04 Window Jamb Surrounds & Pilaster Mouldings on White Villa
PS-03 / PS-04 (150 × 20 mm) · Mitered Class A1 surrounds
Modern Detached House · Flat / 45° Jambs + Wood Cladding
Crisp White 20 mm Flat & 45° Beveled Jamb Bands Framing Warm Wood-Look Panels
Flat / 45° Jamb (80–200 × 20 mm) · Clean modern border
High-Rise Residential Tower · Class A1 Window Surrounds
Non-Combustible 20 mm Window Jamb Profiles Across High-Rise Residential Elevation
PS-01 / PS-02 (100–120 × 20 mm) · Zero fire leap at windows
Window & Door Surrounds · 20 mm Jamb / Söve Profiles
Mitered 20 mm Stepped & Beveled Fibre Cement Window Jamb Surrounds
20 mm solid jamb bar · 45° mitered corners · Paintable face16-Point Technical & Export Supply Dossier
01 Product Overview & 20 mm Window Jamb System
IndexSerFibro Window Jamb & Architrave Profiles are 20 mm thick autoclaved fibre cement facade trims designed to frame window openings, exterior doors, reveals, and building corners with crisp architectural relief and full Class A1 fire safety.
02 Six Profile Sub-Types: Flat, 45° Beveled & PS-01..PS-04
IndexThe range covers Flat and 45° Beveled profiles in 80, 100, 150, and 200 mm widths alongside four stepped decorative architrave profiles: PS-01 (100 mm), PS-02 (120 mm), and PS-03 / PS-04 (150 mm), all supplied in 2500 and 3000 mm lengths.
03 Fire-Safe Window Reveals (TS EN 13501-1 Class A1)
IndexWindow openings are the primary pathway where interior flames leap onto exterior facades. Framing windows with Class A1 non-combustible fibre cement trims instead of EPS foam prevents molten dripping and flame propagation around glazing.
04 Unprimed & Pre-Primed Surfaces for Contrasting Frames
IndexSupplied natural grey or factory alkali-primed, SF-JAMB profiles accept exterior acrylic and silicone facade coatings—enabling crisp off-white surrounds on dark slate/stone facades or anthracite frames on light elevations.
05 45° Mitered Frame Corners vs Traditional Butt Framing
IndexStepped PS-01..04 profiles are typically miter-cut at 45° at upper window corners so the stepped relief wraps continuously around the opening, whereas Flat and 45° Beveled profiles also support clean vertical-over-horizontal butt framing and external wall corners.
06 Villas, Light-Steel Prefab Houses, Hotels & Renovations
IndexPrefabricated steel-frame house builders pair 80 / 100 mm Flat and 45° trims with SF-SIDING lap planks around windows and external corners, while urban apartment and hotel architects specify 120 / 150 mm PS-series frames with SF-CORNICE floor bands.
07 Mechanical Fixing + Elastic Adhesive & Joint Sealing
IndexFix 20 mm jamb bars mechanically (stainless countersunk screws) backed by exterior polyurethane adhesive, and leave a flexible UV-resistant mastic joint between the fibre cement bar and the aluminium/PVC window frame to accommodate differential thermal movement.
08 Impact, Bird-Pecking & Freeze-Thaw Resistance
IndexGround-floor window surrounds and door jambs suffer frequent knocks from maintenance equipment, hail, and birds. Solid 20 mm autoclaved fibre cement resists indentation, moisture ingress, and freeze-thaw delamination under EN 12467 Category A.
09 Window Opening Perimeter Take-Off & Bar Length Selection
IndexMatch 2500 mm or 3000 mm bar lengths to window heights (e.g. a 1400 × 1500 mm window takes two vertical legs + one top lintel from two 2500 mm bars with minimal offcut). Include 8–10% allowance for 45° miter cuts.
10 Standardised 90 m² Export Pallets Across All Widths
IndexEvery full pallet across the SF-JAMB range equals 90.0 m² geometric area: from 450 pcs (80×2500 mm) and 360 pcs (100×2500 mm) to 300 pcs (120×2500 mm), 240 pcs (150×2500 mm), and 150 pcs (200×3000 mm), simplifying freight weight calculation.
11 Dry Covered Storage & Edge Protection on Site
IndexKeep pallets wrapped on flat timber bearers indoors away from standing water or mud splashes. Wipe dry sawing dust off immediately before any moisture contacts the primed surface.
12 Mixed Container & Road Truck Dispatch from Türkiye
IndexOrder SF-JAMB window trims standalone or consolidated alongside SerFibro facade panels, lap siding, and KS-01/02 cornices under EXW, FCA, FOB, CIF, or DAP export delivery terms.
13 Profile Section Samples (PS-01..04 & 45° Bevel)
IndexArchitects and developers can request short physical cross-section samples of Flat, 45° Beveled, and PS-01..04 profiles to evaluate shadow depth against window frame mock-ups.
14 Supply, Consultancy, Engineering & Application Scope
IndexStandard material quotations cover Fibre Cement Window Jamb & Architrave Profiles (Söve) in the confirmed dimensions and surface state along with export palletising. Upon request, our CFY Engineering & Architecture team also provides architectural project design, modulation consultancy, facade engineering, substructure coordination, and professional site application as dedicated items in your quotation.
