Coastal Boutique Hotel · Slate Stone & Wood Plank Contrast
SerFibro Stone Slate-Textured Board (SF-STONE-SLATE) — 1250 × 2500 mm in 10 mm (60 pcs/pallet) & 12 mm (50 pcs/pallet).
Uncoloured / Paintable
SF-STONE-SLATE · TX-ST-SLATE
SerFibro Stone Slate-Textured Fibre Cement Board
SerFibro Stone Slate-Textured Board (SF-STONE-SLATE) brings authentic layered cleft-slate stone character to ventilated facades and interior feature walls without the dead-load penalty of quarried stone. Produced in standard 1250 × 2500 mm sheets in 10 mm and 12 mm thicknesses with EN 13501-1 Class A1 fire safety, boards can be installed full-size or rip-cut into bespoke architectural stone courses.
| Brand | SerFibro |
|---|---|
| Product Category | Uncoloured / Paintable Textured Boards → |
| Product Group | Textured & Calibrated Fibre Cement Board |
| Fire Resistance Class | A1 TS EN 13501-1 |
| Primer Status |
|
| Application Areas |
|
Product Quick Specification Summary
Product Form
Autoclaved Embossed / Textured Facade Board
TS EN 12467+A2 Cat. A
Surface / Texture Code
TX-ST-SLATE
Supplied Finish Options
Natural Autoclaved Grey (Unprimed) or Factory Pre-Primed (Paintable)
Common Enquiry Formats
1250 × 2500 mm
Candidate Thicknesses
10 mm
12 mm
TS EN 12467+A2 Cat. A · Class A1
Geometric Board Area
3.125 m² / unit
60 pcs / pallet
SerFibro Textured & Calibrated Boards — 16 Superior Advantages
Manufactured from 100% natural raw materials; eco-friendly and safe for human health.
Completely free of asbestos (NT Type) and any substances harmful to human health.
Class A1 non-combustible per EN 13501-1; does not melt and helps contain fire spread.
Odourless and emits zero toxic gases or harmful fumes during fire exposure.
Unaffected by water with lower absorption than reinforced concrete; safe in humid climates.
Autoclaved silicate-cement matrix provides extreme weather and UV radiation resistance.
Does not rot, corrode or degrade; long service life without special maintenance.
Provides strong thermal (λ = 0.20 W/mK) and acoustic insulation contribution.
Can be painted repeatedly with any alkali-resistant interior or exterior architectural paint.
Easily cut, drilled and machined with appropriate tools for fast dry installation.
Eliminates wet fine-plastering labour on walls, saving significant schedule time and cost.
High impact and mechanical shock resistance for demanding public and commercial walls.
Lightweight & easy to handle: an 8 mm board weighs approx. 11.2 kg/m² depending on ambient humidity.
Frost-resistant per TS EN 12467; performs reliably even in severe sub-zero climates.
Resistant to chemical agents and animal waste—ideal for agricultural and industrial facilities.
Bonds excellently to EPS/XPS/rockwool cores for composite sandwich and press-panel manufacturing.
Board Dimensions & Pallet Packing Table

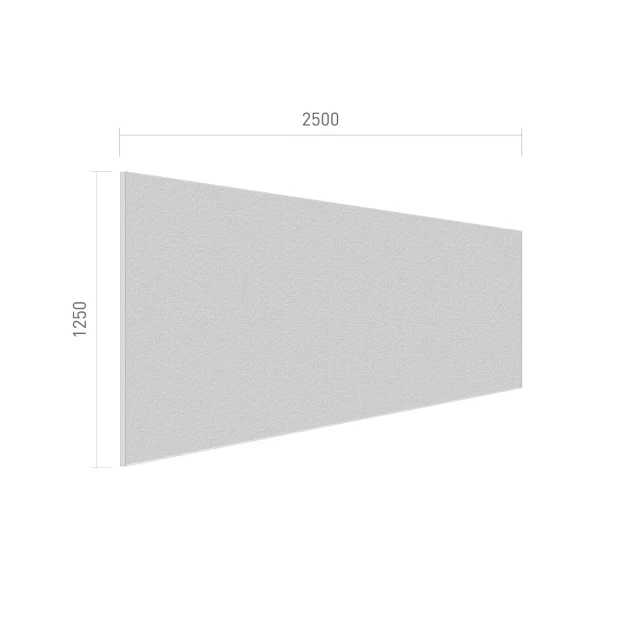

| Technical Drawing | Dimensions (mm × mm) | Thickness (mm) | Board Area (m²) | Boards per Pallet | Enquiry Form |
|---|---|---|---|---|---|
| 1250 × 2500 mm | 10 mm | 3.125 m² | 60 pcs | ||
| 12 mm | 3.125 m² | 50 pcs |
SerFibro
SerFibro Stone Slate-Textured Fibre Cement Board
Instant Board Quantity, Area & Volume Enquiry
SerFibro Textured Fibre Cement Boards — Complete Technical Specifications Table
| Property / Parameter | Specification Value |
|---|---|
| Product Definition | Cellulose fibre reinforced cement and silicate autoclaved board |
| Product Type & Category | NT Type — Category A Exterior & Architectural Cladding (TS EN 12467) |
| Surface Appearance | Embossed Wood, Stone, Brick, Striped or Sanded/Calibrated (Unprimed / Pre-Primed) |
| Tolerance Level | Level 1 |
| Standard Dimensions | 1250 × 2500/3000 mm · 1225 × 2590/3000 mm · 1250 × 2620 mm · 615 × 2460 mm |
| Thickness Range | 8 mm · 10 mm · 12 mm (depending on surface relief model) |
| Dimensional Tolerances | Long Edge (length): ± 5 mm / Short Edge (width): ± 3.75 mm |
| Thickness Tolerance (e: board thickness) | Smooth Board: ± 10% e (Patterned Board: -10% e / +15% e) |
| Out-of-Squareness at Corners | ± 2 mm/m |
| Edge Straightness | ± 0.1% a (a: edge length) |
| Density | ~ 1350 ± 50 kg/m³ (8 mm board weight ~ 11.2 kg/m² depending on ambient moisture) |
| Vapour Diffusion Resistance Factor | μ ≤ 30 |
| Porosity | ~ 30% |
| Flexural Strength (Minimum) | Category A Exterior (Class 2): ≥ 7.0 N/mm² | Category C Interior (Class 3): ≥ 10.0 N/mm² (average of length/width) |
| Frost Resistance | Frost-resistant in accordance with TS EN 12467 |
| Water Impermeability | Water-impermeable in accordance with TS EN 12467 |
| Flame / Fire Resistance | Non-combustible, Class A1 building material per EN 13501-1 |
| Asbestos Content | Asbestos-free (NT Type board) |
| Harmful Substance Emission | Zero harmful substance or toxic gas emission |
| Thermal Expansion Coefficient | αt = 0.005 mm/mK |
| Thermal Conductivity | λ = 0.20 W/mK |
| Water Absorption Ratio | < 30% |
| In-Stock Board Moisture Content | < 10% (depending on ambient humidity) |
| Moisture Dimensional Change | 0.5 mm/m (at full saturation) |
Non-Combustibility & Thermal Conductivity Laboratory Tests
8 mm Board Furnace Test
Duration: 3 Hours · Temperature: 500 °C · Class A1 No Ignition
20 mm Board Furnace Test
Duration: 1 Hour · Temperature: 500 °C · Structural Integrity Preserved
Front vs Rear Face Thermal Drop (1 Hour)
Exposed Front Face: 506 °C → Unexposed Rear Face: 192 °C
SerFibro
Open Full Facade & Material Gallery
Architectural Facade & Material Appearance Examples
Architectural facade visuals illustrating real texture, joint modulation, and profile details for this fibre cement series. Available as standalone material supply or with integrated project consultancy, facade engineering, and application.
Contemporary Pool Villa · Slate Stone & Wood Soffit
Modular Slate-Grey Fibre Cement Cladding & Cantilevered Wood-Grain Soffit
Slate Stone + Walnut Soffit · Complete A1 envelope
Mansard Residential Blocks · Slate Relief & Moulded Bays
Warm Limestone-Beige Textured Panels Paired with Mansard Zinc-Tone Roofline
Slate Stone 10 mm + 20 mm Mouldings · Warm limestone RAL
Detached Villa Entrance · Staggered Brick & Wood Relief
Staggered Brick-Relief Ground Floor Combined with Dark Upper Cladding on Villa
Staggered Brick (TX-BR-01) · Multi-tone masonry paint effect16-Point Technical & Export Supply Dossier
01 Product Overview & Autoclaved Mineral Engineering (SF-STONE-SLATE)
IndexSerFibro Stone Slate-Textured Fibre Cement Board (SF-STONE-SLATE) is an autoclaved cellulose-fibre reinforced cement architectural element manufactured from natural cellulose fibres, micronized quartz, Portland cement and water in full compliance with TS EN 12467+A2 NT Type, Category A. Features a fine natural cleft-slate embossing across the entire 3.125 m² sheet face that highlights mineral layering under daylight.
02 Dimensions, Thicknesses & Precision Tolerances
IndexProduced in 1250 × 2500 mm (3.125 m²/board) in 10 mm (60 pcs = 187.50 m²/pallet) and 12 mm (50 pcs = 156.25 m²/pallet). Manufactured to Level 1 / Level 2 precision tolerances under TS EN 12467+A2, maintaining squareness within ≤ 2 mm/m and edge straightness within ≤ 0.1%–0.3% a for rapid modular alignment on facade elevations.
03 Surface Texture, Shadow Relief & Orientation Discipline
IndexCatalogued under TX-ST-SLATE, Features a fine natural cleft-slate embossing across the entire 3.125 m² sheet face that highlights mineral layering under daylight. Installers should maintain consistent panel orientation across contiguous facade bays so oblique sunlight casts uniform architectural shadow lines.
04 Natural Unprimed, Pre-Primed & Breathable Acrylic Coating Compatibility
IndexSupplied either in natural autoclaved mineral grey (unprimed) or factory pre-primed ready for finishing, SerFibro Stone Slate-Textured Fibre Cement Board accepts all breathable water-based pure acrylic, silicone-modified exterior facade paints, antique patinas and semi-transparent mineral stains in unlimited RAL/NCS shades.
05 Workshop Cutting, Drilling & Cut-Edge Sealing
IndexCut boards dry using diamond-tipped or carbide-tipped circular saw blades equipped with dust extraction. Wipe alkaline sawing dust off immediately with a dry microfiber cloth or vacuum, lightly deburr cut edges, and seal field-cut edges with alkali-resistant acrylic primer before topcoating.
06 Architectural & Structural Application Domains
IndexUsed across classic, contemporary and prefabricated residential villas, apartment facades, hotels, hospitals, schools, theatres, stadiums, plinth walls and decorative interior feature walls.
07 Substructure Fixing, Joint Allowances & Thermal Movement
IndexInstall on vertical galvanized steel (0.8–1.5 mm) or aluminium rainscreen profiles at 600–625 mm centres with corrosion-resistant facade screws/rivets, maintaining 4–8 mm expansion joints between boards.
08 EN 13501-1 Class A1 Fire Safety & TS EN 12467 Category A Durability
IndexCertified EN 13501-1 Class A1 non-combustible (furnace tested at 600 °C without ignition and zero toxic fume release), the autoclaved matrix achieves ≥ 1300 kg/m³ density, Category A freeze-thaw / warm-water / soak-dry resistance (RL ≥ 0.75), 50 heat-rain cycles without cracking or delamination, total water impermeability (no underside droplets after 24 h), zero asbestos, zero odour and complete immunity to rot, termites and UV.
09 Take-Off Calculation, Waste Allowance & Batch Planning
IndexUse the live dimension calculator above (3.125 m² / unit · 60 pcs / pallet) to convert net facade square metres or linear runs into exact piece and pallet counts. Include 7%–12% cutting and site reserve allowance depending on window openings and corner returns.
10 Export Palletising, Edge Protection & Container Loading
IndexUnits are stacked flat on reinforced wooden export skids fitted with rigid corner protectors, high-tensile PET strapping and moisture-barrier shrink hoods, engineered for safe road-trailer and 20 ft sea-container transport.
11 Site Storage, Forklift Handling & Moisture Protection
IndexStore pallets on level, dry indoor floors away from standing water and direct rain. Lift elements vertically off the stack rather than dragging across textured/machined faces, and carry long boards vertically on edge with two operatives.
12 Mixed-Model Export Consolidation from Türkiye
IndexSerFibro dispatches SerFibro Stone Slate-Textured Fibre Cement Board worldwide under EXW, FCA, FOB, CIF and DAP Incoterms, allowing distributors and project buyers to consolidate flat boards, textured panels, grooved boards, cornices, window jambs and lap siding in a single shipment.
13 Physical Sample Box, CAD Cross-Sections & CE / DoP Submittals
IndexArchitectural offices and B2B buyers can inspect the dimensioned CAD cross-section drawing directly in the table above and request physical hand samples alongside TS EN 12467+A2 / EN 13501-1 Class A1 Declaration of Performance documents.
14 Supply, Consultancy, Engineering & Application Scope
IndexStandard material quotations cover SerFibro Stone Slate-Textured Fibre Cement Board (SF-STONE-SLATE) in the confirmed dimensions and surface state along with export palletising. Upon request, our CFY Engineering & Architecture team also provides architectural project design, modulation consultancy, facade engineering, substructure coordination, and professional site application as dedicated items in your quotation.
Related Fibre Cement Product Families
SerFibro Stone — Stone-Textured Fibre Cement Board
Deeply moulded slate, split-stone and layered rock relief boards in 10–12 mm thicknesses for plinths, prefab villas and ventilated commercial elevations.

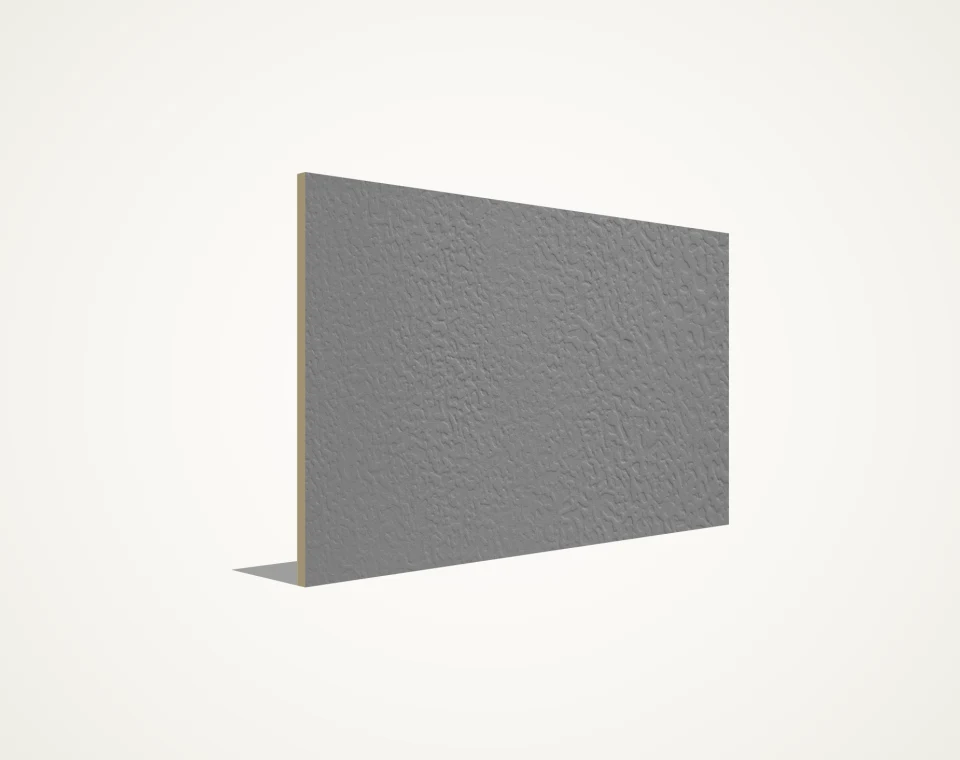

SerFibro Decorative Stone Textured Fibre Cement Board
Impact-resistant 10 & 12 mm decorative stone relief sheets in 1250 × 2500 / 3000 mm that cut cleanly to custom stone formats and accept any water-based facade paint.
SerFibro ColorBoard Stone Through-Coloured Board
Natural stone surface relief pressed into a 1250 × 2500 × 10 mm mass-pigmented Class A1 sheet—far lighter, faster to cut and easier to install than quarried stone with zero site painting.
Frequently Asked Technical & Commercial Questions
What exact dimensions and thicknesses are produced for SerFibro Stone Slate-Textured Fibre Cement Board?
Produced in 1250 × 2500 mm (3.125 m²/board) in 10 mm (60 pcs = 187.50 m²/pallet) and 12 mm (50 pcs = 156.25 m²/pallet).
Which surface textures and coating options are available for SF-STONE-SLATE?
Features a fine natural cleft-slate embossing across the entire 3.125 m² sheet face that highlights mineral layering under daylight. Boards are supplied unprimed natural grey or factory pre-primed and can be finished in any water-based exterior acrylic facade paint or stain.
What fire reaction class and weather durability standard does SerFibro Stone Slate-Textured Fibre Cement Board meet?
It holds EN 13501-1 Class A1 non-combustibility (tested at 600 °C without ignition or toxic gas) and TS EN 12467+A2 Category A exterior durability (RL ≥ 0.75 across freeze-thaw, wet-dry and warm-water cycles, plus 50 heat-rain cycles).
How many pieces are packed on an export pallet of SF-STONE-SLATE?
Standard unit and pallet metrics start at 3.125 m² / unit · 60 pcs / pallet (see every row in the Dimension & Pallet Table above for exact piece and m² totals per format).
Does SerFibro provide project consultancy, facade engineering, and installation alongside material supply?
Yes. You can procure SerFibro Stone Slate-Textured Fibre Cement Board as standalone domestic or export B2B material supply (EXW, FCA, FOB, CIF, DAP), or request an integrated project package covering architectural consultancy, facade engineering, sub-framing, and professional application.
